First steps

After going through the Installation section and having installed all the operators, you deploy a NiFi cluster and the required dependencies. Afterward you can verify that it works by querying the REST API.

Setup

We are going to install a NiFi cluster by applying a manifest file. The operators create the resources according to the manifests.

The NiFi cluster requires authentication. Create a set of credentials for this purpose:

kubectl apply -f - <<EOF
---
apiVersion: v1
kind: Secret
metadata:
  name: simple-admin-credentials
stringData:
  admin: admin
---
apiVersion: authentication.stackable.tech/v1alpha1
kind: AuthenticationClass
metadata:
  name: simple-nifi-users
spec:
  provider:
    static:
      userCredentialsSecret:
        name: simple-admin-credentials
EOF

Afterwards create a NiFi instance:

kubectl apply -f - <<EOF
---
apiVersion: nifi.stackable.tech/v1alpha1
kind: NifiCluster
metadata:
  name: simple-nifi
spec:
  image:
    productVersion: 2.4.0
  clusterConfig:
    authentication:
      - authenticationClass: simple-nifi-users
    sensitiveProperties:
      keySecret: nifi-sensitive-property-key
      autoGenerate: true
  nodes:
    roleConfig:
      listenerClass: external-unstable
    roleGroups:
      default:
        replicas: 1
EOF

Verify that it works

First, make sure all pods are ready:

kubectl wait --for=condition=available --timeout=20m nificluster/simple-nifi

Then make sure the StatefulSets are ready:

kubectl get statefulset

The output should show all pods ready:

NAME                                 READY   AGE
simple-nifi-node-default             2/2     5m
simple-zk-server-default             3/3     7m

Congratulations! You successfully created your first NiFi cluster!

Access the NiFi web interface

You can retrieve the URL for the NiFi cluster web interface via stackablectl or kubectl.

stackablectl

Use the service command of stackablectl to get a list of all available endpoints:

stackablectl stacklet list

which should return something like this:

 PRODUCT    NAME         NAMESPACE  ENDPOINTS                           CONDITIONS
 nifi       simple-nifi  default    node-https https://172.18.0.2:30528 Available, Reconciling, Running

You can also use the json output and parse the endpoint:

nifi_url=$(stackablectl stacklet ls -o json | jq --raw-output '.[] | select(.name == "simple-nifi") | .endpoints["node-https"]')

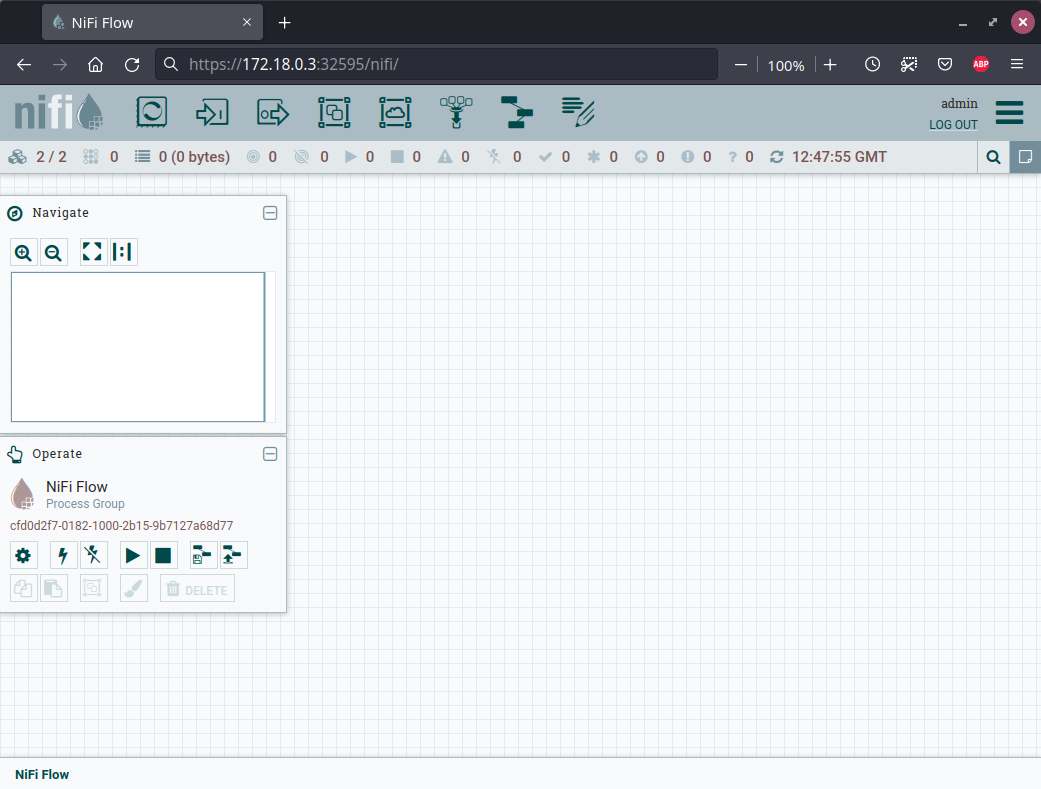

Then connect to https://172.18.0.2:30528/nifi and you should see the NiFi web login. After providing the username admin and password admin you are redirected to the NiFi web interface.

Via kubectl

You can also extract the endpoint from the Listener status via kubectl:

nifi_url=$(kubectl get listener simple-nifi-node -o 'jsonpath=https://{.status.ingressAddresses[0].address}:{.status.ingressAddresses[0].ports.https}') && \
echo "NiFi URL: $nifi_url"

should output a URL to connect to the NiFi web interface:

NiFi URL: https://172.18.0.2:30528

Then connect to https://172.18.0.2:30528/nifi and you should see the NiFi web login. After providing the username admin and password admin you are redirected to the NiFi web interface.

What’s next

Have a look at the Usage guide page to find out more about the features of the NiFi Operator.
